Metalwork

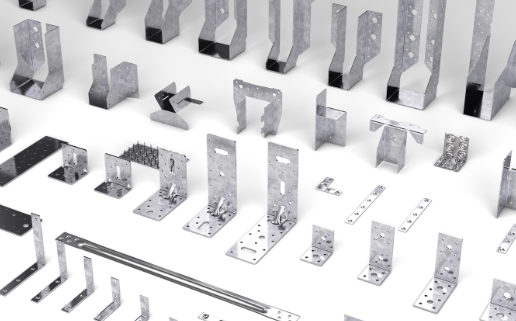

A range of metalwork products designed to assist in the fixing of timber joists, trusses, wall plates etc. when connecting timber floor and roof systems to the main masonry structure. Supplied from pre-galvanised material as standard and also available in Stainless Steel 304 Grade Austenitic.
SMH Joist Hanger Type S (SJH)
The standard hanger is designed for building into brickwork or blockwork.
View product
SMH Joist Hanger Type R (RJH)
The return type hanger is designed for similar application to the Type S but with the advantage of a return flange (25mm as standard ) which greatly increases lateral support by giving the top flange additional resistance to pull out. We would recommend the use of TYPE R return flange hangers wherever possible for all timber to brick applications. As standard the return hanger is manufactured to suit 100mm blockwork, however any length of top flange is available to order.
View product
SMH Joist Hanger Type D (STJH)
The straddle type joist hanger is used when timber joist positions are directly opposite each other on either side of a wall or beam. As standard the straddle hanger is manufactured to suit 100mm blockwork, however any width is available to order.
View product
V Vertical (Light Duty) Restraint Straps (LDMH)
Light duty restraint straps can be used for vertical restraint applications, such as holding down wall plates to masonry. These multi-holed straps are supplied in 100mm increments with 6mm holes at 25mm offset centres. Available straight, bent or twisted or in combinations as required in galvanised or stainless steel.
View product
H Horizontal (Heavy Duty) Restraint Straps (HDMH)
Heavy duty restraint straps (galvanised edge coated) are suitable for horizontal restraint applications such as tying timber roofs and floors into masonry walls. These multi-holed straps are supplied in 100mm increments with 6mm holes at 25mm offset centres. Available straight, bent or twisted or in combinations as required in galvanised or stainless steel.
A190 Light Duty Hanger (Short Leg) (V81-SL)
Short Leg Timber to Timber Hanger. A quick and safe method of joist trimming for light and medium applications such as supporting floor joists, trimming stair wells. They have increased hole centres to spread load over greater area.
A270 Light Duty Hanger (Standard Leg) (V81)
Standard Timber to Timber Hangers. A quick and safe method of joist trimming for light, medium and heavy applications such as supporting floor joists, trimming stair wells, and underslung joists. They have increased hole centres to spread load over greater area.
B340 Medium Duty Hanger (Standard Leg)
A medium duty hanger that is suitable for joist depths of up to 250mm.
View product
B460 Medium Duty Hanger (Long Leg) (V81-Long)
Long Leg Timber to Timber Hangers. Manufactured from 1.2mm thick pre-galvanised steel with 50mm wide legs, suitable for solid joist or I-Beam applications, either face fixed or wrapped over supporting joists.
